Four examples drawn from real project records and field documentation. Each follows the same R3 Praxis logic: Variables → Relationships → Control → Close.

PRIVACY & EVIDENCE: Customer names, addresses, financial information and private correspondence are excluded. Photo selections focus on materials and work methods. Findings are presented only to the level supported by the records.

01 VARIABLES
02 RELATIONSHIPS
03 CONTROL
04 CLOSE
01 / R3 EVALUATION · COATINGSBACK TO CASE INDEX ↑
R3 EVALUATION + LAB TEST NOTES

EXTERIOR ALUMINUM SIDING RESTORATION

Evidence before coating expansion

THE QUESTION
Could a variable, previously coated aluminum surface accept additional coating without repeating an earlier adhesion problem?

Field records describe oxidation and chalking, coating release during cleaning, and different responses from one area to another. Rather than assuming the entire exterior had the same condition, the work was organized by preparation state and test evidence.

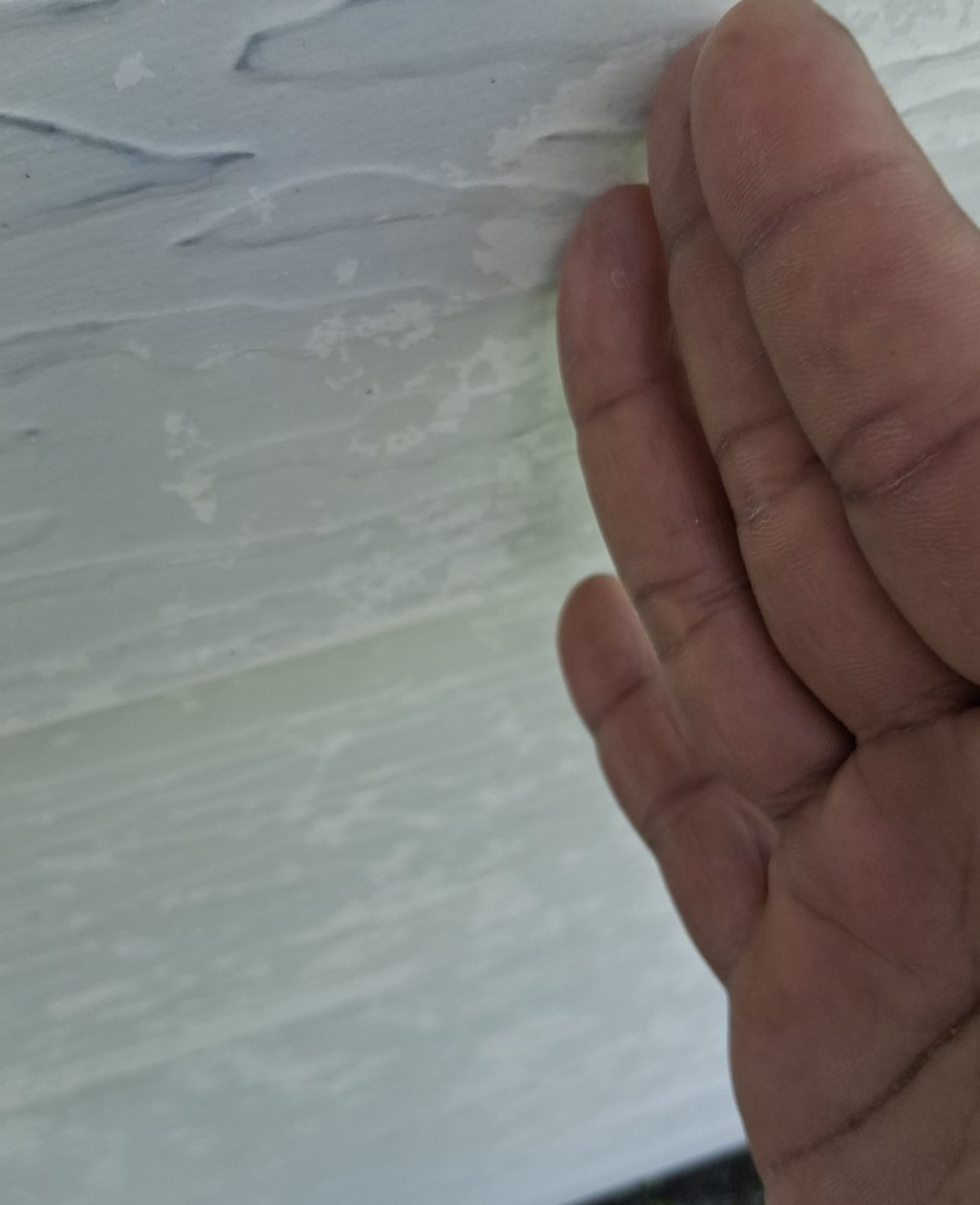

CHALK / SURFACE CHECK · TAP TO ENLARGE ↗

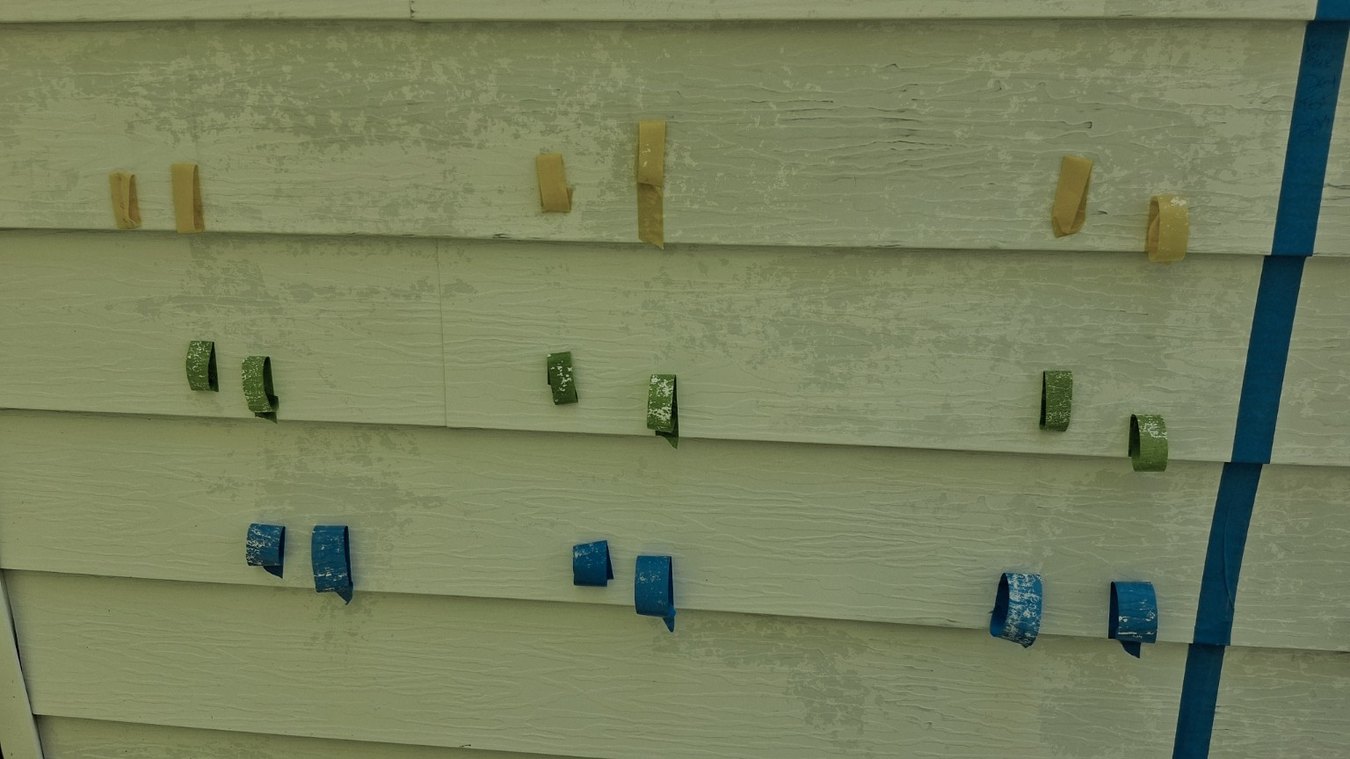

CONTROLLED TAPE COMPARISON · TAP TO ENLARGE ↗
Original aspect ratio preserved. Select any photograph to view it larger; use arrows to see the next image.
01VARIABLES

Existing coating, chalk transfer, localized film release and environmental exposure were documented. Original application history remained partly unknown.

02RELATIONSHIPS

Cleaning quality affects primer adhesion; primer adhesion affects whether topcoat testing can proceed. Sun exposure and substrate temperature limit suitable work periods.

03CONTROL

The cleaned control area was compared with a separately prepared PrimeRx patch. Chalk checks, tape pulls and a controlled topcoat trial preceded any broader coating decision.

04CLOSE

Repeated tape checks showed no obvious broad PrimeRx film release in the documented patch. The initial topcoat photographs showed no immediate adverse reaction; durability over time was not established.

THE SOURCE RECORD

Field-verification update · Primer/topcoat test report · Zone and temperature records

WHAT THE RECORD DOES NOT PROVE

The recorded observations support limited, condition-based decisions—not a claim that every coating layer or elevation was verified, and not proof of long-term service life.

02 / REGULATED WORK · FIELD CONTROLBACK TO CASE INDEX ↑
RRP AUTHORITY + R3 CONTROL PRINCIPLES

LEAD-SAFE EXTERIOR RENOVATION

The control system is part of the job

THE QUESTION
How should deteriorating painted wood shingles be repaired while controlling disturbance, debris and work-zone exposure?

An anonymized exterior case record describes widespread peeling coating and damaged shingles. The work required more than painting: controlled access, containment, repair, HEPA-supported cleanup and a sequenced return to coating.

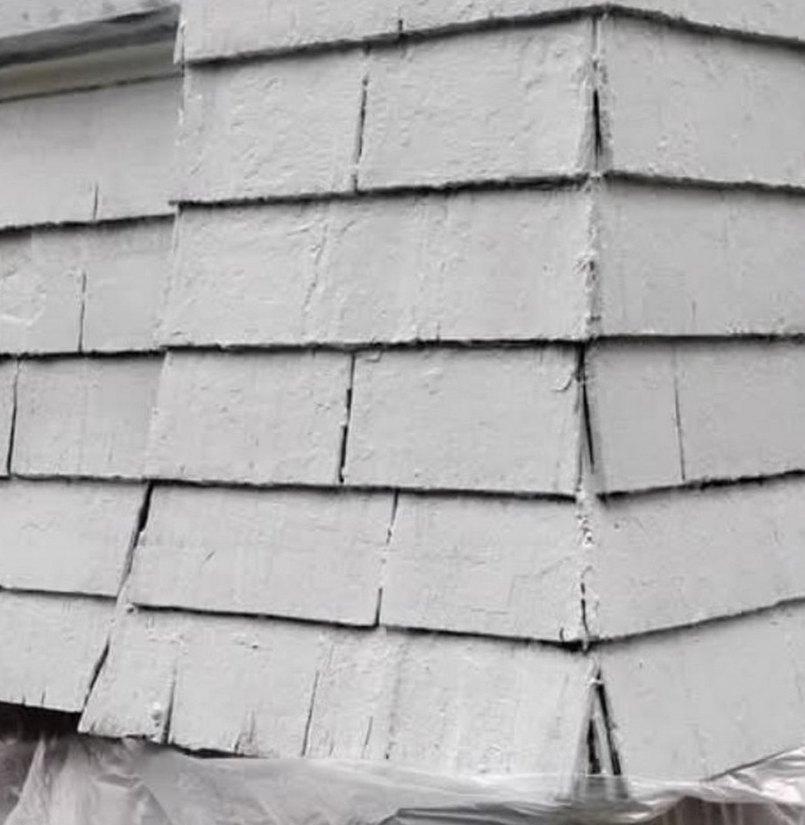

EXISTING SHINGLE CONDITION · TAP TO ENLARGE ↗

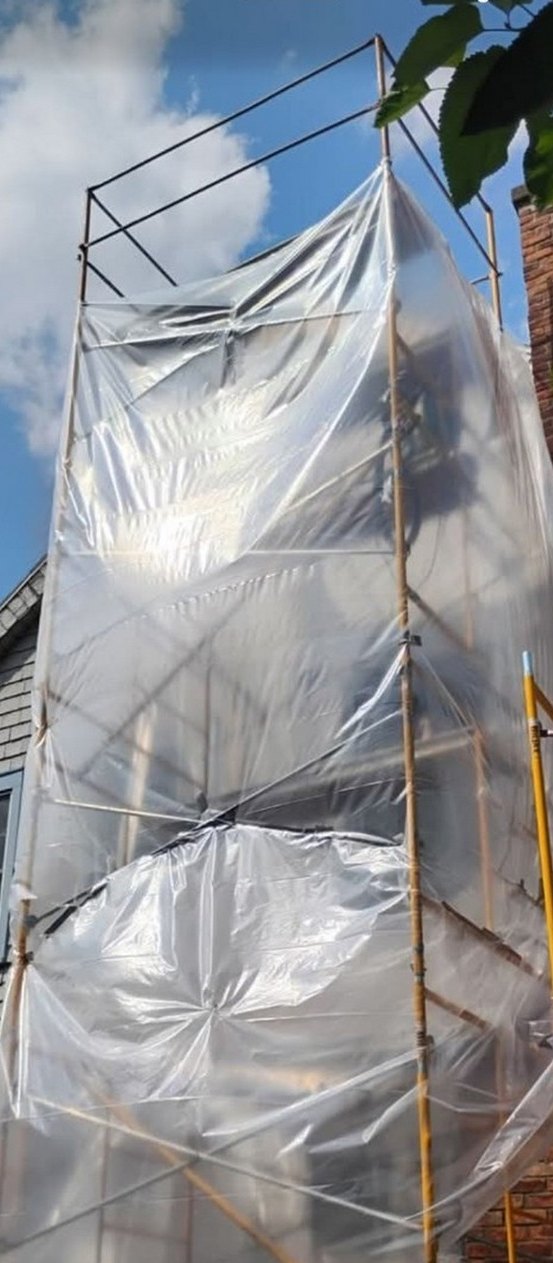

CONTROLLED ACCESS / CONTAINMENT · TAP TO ENLARGE ↗
Original aspect ratio preserved. Select any photograph to view it larger; use arrows to see the next image.
01VARIABLES

Loose and peeling coatings, damaged wood shingles, multiple elevations and numerous joints were documented as conditions relevant to the work.

02RELATIONSHIPS

Paint disturbance creates a debris-control requirement; access and containment depend on the active work zone; damaged shingles must be addressed before final finishing.

03CONTROL

The documented production route used staged scaffold access and containment, wet scraping, debris capture and HEPA equipment, selective shingle repairs, coating and cleanup.

04CLOSE

The case record describes cleanup and demobilization as work steps. It does not publish independent clearance-test results or establish that the building was certified lead-free.

THE SOURCE RECORD

Anonymized lead-safe exterior case study · Condition and work-sequence photographs

WHAT THE RECORD DOES NOT PROVE

EPA RRP renovation is distinct from licensed lead abatement. The public record explains the work process, not a third-party inspection, clearance result or lead-safe housing certificate.

03 / GENEVIEVE R3 LAB · FINISH SYSTEMBACK TO CASE INDEX ↑
APPLIED COATINGS / LAB PROCESS STUDY

CABINET REFINISHING & COATING SYSTEMS

Build the surface before the finish

THE QUESTION
How can worn cabinet surfaces be prepared and finished consistently without relying on heavy paint application to hide defects?

The working process sheet documents staged cleaning, corrective filling, shellac sealing, sanding and controlled enamel application. The project photographs show the original finish and the later green cabinet appearance.

ORIGINAL CABINET FINISH · TAP TO ENLARGE ↗
GREEN-TONED REFINISHED CABINETRY · TAP TO ENLARGE ↗
Original aspect ratio preserved. Select any photograph to view it larger; use arrows to see the next image.
01VARIABLES

Existing coatings, gloss, dents, edges and profile details were examined as preparation variables. Contamination and incomplete repairs were potential finish risks.

02RELATIONSHIPS

Degreasing comes before adhesion preparation. Spot repairs, sealing and sanding affect surface uniformity and therefore the appearance of thin final coats.

03CONTROL

The documented working sequence included scuff sanding, staged spot repairs, shellac sealing, refinement between coats and controlled application of cabinet-grade enamel.

04CLOSE

Before-and-after photographs show the visible color and finish change. The working procedure is a process reference, not a certified as-built coat-count record or quantified wear test.

THE SOURCE RECORD

Hand-finished cabinet coating-system procedure · Before, progress and later-finish photographs

WHAT THE RECORD DOES NOT PROVE

Technique and visible finish can be documented. Laboratory adhesion values, long-term wear performance and an exact final layer count are not established by these materials.

04 / R3 EVALUATION · PRELIMINARYBACK TO CASE INDEX ↑
PRELIMINARY R3 FIELD REVIEW

PLASTER & CEILING CONDITION REVIEW

What is actually behind the surface?

THE QUESTION
What can be learned from an exposed ceiling opening before selecting a repair system?

Field imagery shows a ceiling opening and a layered board/plaster interface. The purpose of the review is to separate visible facts from possible explanations, and identify what needs checking before a repair scope is finalized.

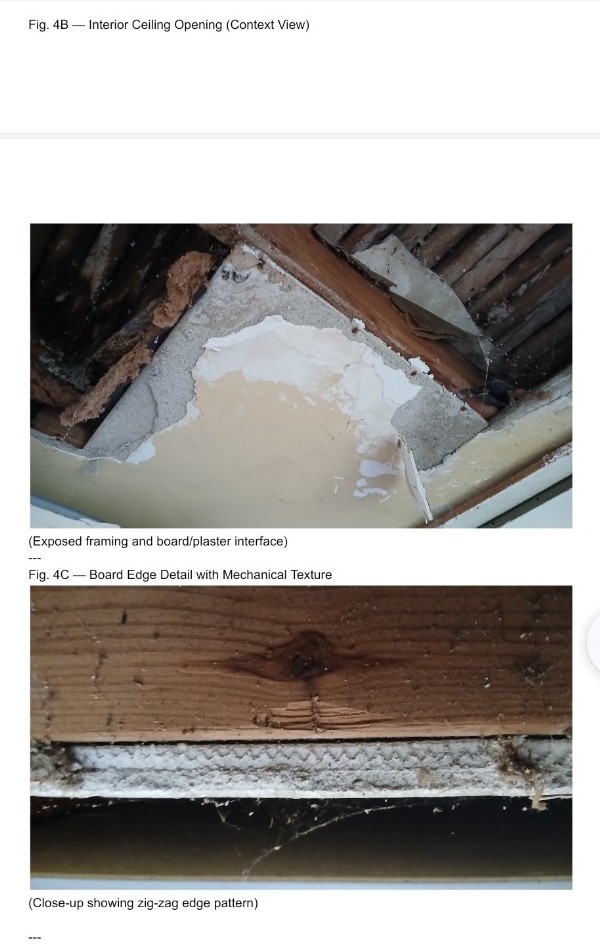

EXPOSED CEILING LAYERS · TAP TO ENLARGE ↗
Original aspect ratio preserved. Select any photograph to view it larger; use arrows to see the next image.
01VARIABLES

The accessible opening, exposed edges and visible material transitions were photographed. The remaining hidden construction and cause of damage were unknown.

02RELATIONSHIPS

Layer transitions and mechanical attachment affect potential repair compatibility, but the photograph alone cannot confirm composition, moisture history or the cause of failure.

03CONTROL

A preliminary plan would identify additional observations or tests and define the repair boundary before authorizing disturbance or selecting a final system.

04CLOSE

The current public record is a condition-documentation example, not a completed diagnostic finding or evidence that a specified repair has passed verification.

THE SOURCE RECORD

Field photographic study · Preliminary scope-planning notes

WHAT THE RECORD DOES NOT PROVE

No hidden-condition conclusion, engineering determination, regulated inspection result or completed repair verification is asserted.

WHAT R3 MAKES VISIBLE

REASON. CONTROL. VERIFY.

R3 does not replace professional authority. It helps organize the evidence, identify what is unknown, keep scope decisions explicit, and preserve a record of what happened—even when the correct outcome is additional testing or referral.
